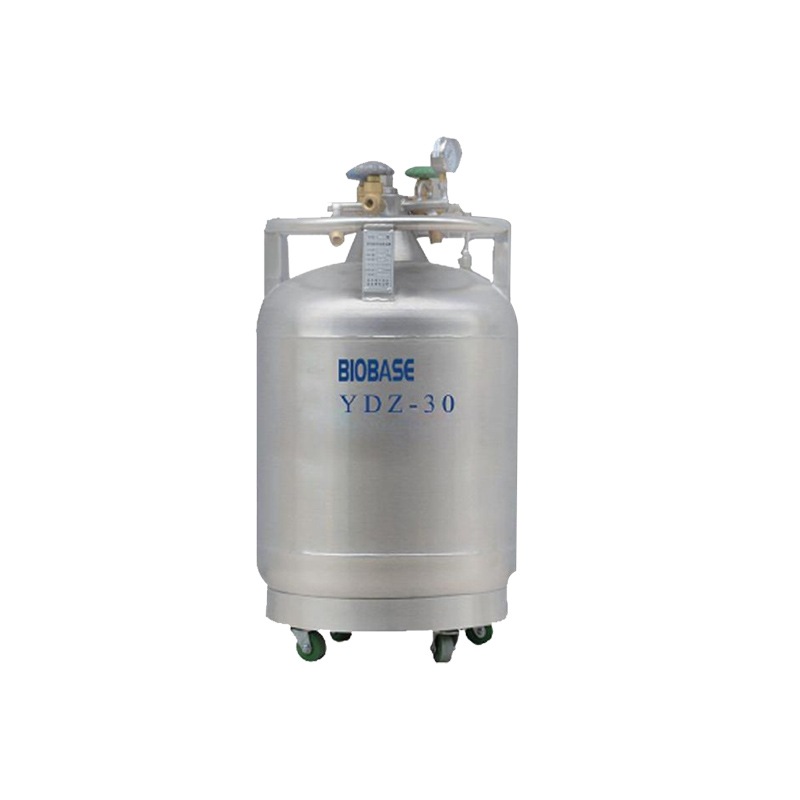

Self-pressurized Liquid Nitrogen Tank
Features:
Unique neck design, low evaporation loss rate;
Has a perfect safety structure;
stainless steel tank;
With casters for easy movement;
With protective operating ring;
With liquid level gauge for YDZ-200;
Optional liquid level gauge;
Optional low temperature regulator;
Optional low temperature solenoid valve;
Optional automatic rehydration function.
| Delivery Time | |
|---|---|
| Supply Capacity |
Technical Parameters:
|
Model |
YDZ-30 |
YDZ-200 |
|
Capacity（L） |
30 |
200 |
|
Net Weight（kg） |
45 |
120 |
|
Caliber（mm） |
50 |
50 |
|
Height（mm） |
850 |
1310 |
|
Static Evaporation Rate（L/d) |
2.5 |
1.2 |
|
Outer Diameter（mm） |
450 |
650 |
|
Standard Working Pressure（Mpa） |
0.05 |
0.05 |
|
Maximum Working Pressure（Mpa） |
0.09 |
0.09 |
|
Primary Safety Valve Opening Pressure（Mpa） |
0.09
|
0.09
|
|
Second Safety Valve Opening Pressure（Mpa） |
0.15 |
0.15 |
|
Pressure Gauge Range（Mpa） |
0-0.25 |
0-0.25 |
