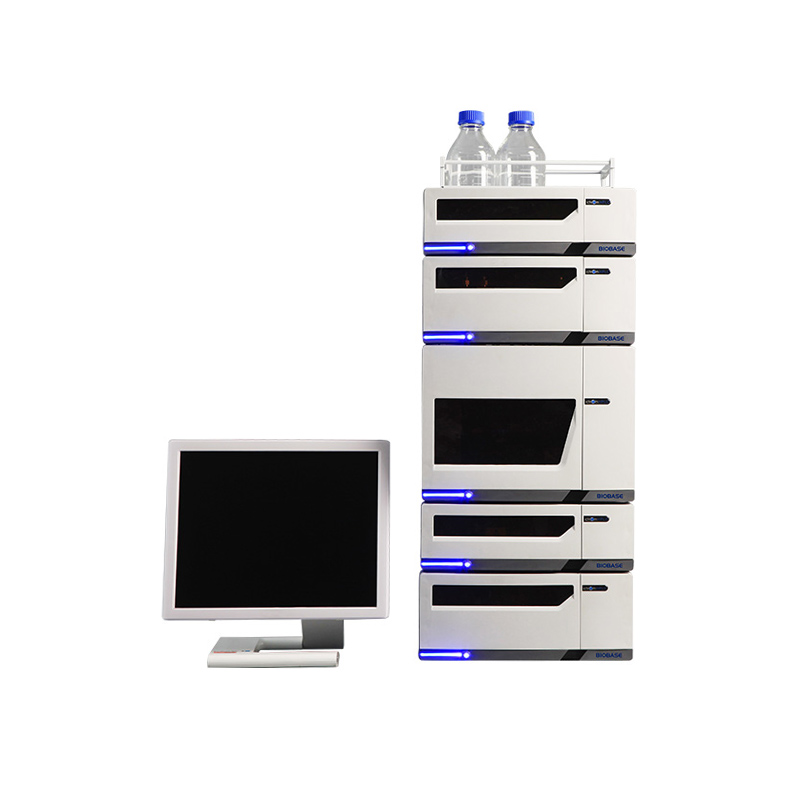

High Performance Liquid Chromatography System BK5100
BK5100 system can load variety of configurations, such as manual valve and automatic sampler, detectors including UV, DAD, LIFD, Rl, ELSD, and widely used in food, medicine, environmental protection and scientific research.
| Delivery Time | |
|---|---|
| Supply Capacity |
Features:
* High integrated SPI, I2C bus and ARM micro-controller technology Poston floating design makes more stable flow.
* Intellectualized sequence analysis and batch processing functions bringing more convenience.
* Automatic wavelength positioning and excellent wavelength accuracy.
* Enable 21 CFR Part 11 compliance.
P5100 Series Pumps:
P5101 high pressure pump; P5102 high pressure binary pump;
P5103 low pressure quaternary pump
|
Flow Range |
0.001 ~10.000 mL/min (step 0.001 mL/min) |
|
Accuracy |
≤±0.2% |
|
Precision |
≤0.06% RSD |
|
Pressure Range |
0- 63 MPa |
|
Power |
AC 220V±10%, 50 Hz/100 W |
|
Dimensions/Weight |
540*400*160 mm (L*W*H)/25 kg |

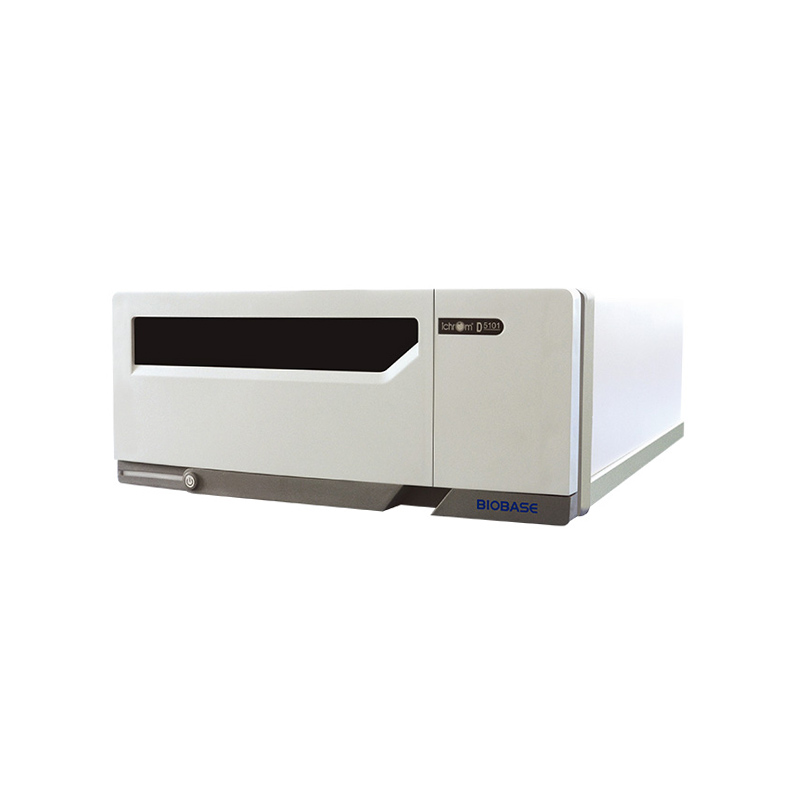

D5101 UV-VIS Detector:
|
Linearity |
≥2.0 AU |
|
Wavelength Range |
190 〜800 nm |
|
Noise |
≤0.25*WsAU |
|
Drift |
≤0.5*1 O^AU/h |
|
Power |
AC 220V±10%, 50 Hz/100 W |
|
Dimensions/Weight |
540*400*160 mm (L*W*H)/16 kg |
D5115/5116 Diode Array Detector:
|
Lineality |
≥2.0 AU |
|
Wavelength Range |
190~800 nm |
|
Noise |
≤1.0*10'4 AU/h |
|
Drift |
≤2.0*10'4 AU/h |
|
Power |
AC 220V±10%, 50 Hz/100 W |
|
DimensionsA/Veight |
540*400*160 mm (L*W*H)/16 kg |
05101 Column Oven:
|
Temperature range |
Ambient + 5 °C 〜85°C |
|
Accuracy |
±0.1°C |
|
Precision |
≤0.1°C |
|
Power |
AC220 V±10%, 50 Hz/130 W |
|
DimensionsA/Veight |
540*400*120 mm (L*W*H) /15 kg |
M5100 System Controller:
M5100 system controller integrates data communication hub, power distribution hub, solvent tray, and on-line degassing.
M5101 System controller for BK5100
M5102 System controller for BK5100 with binary on-line degassing
M5103 System controller for BK5100 with quaternary on-line degassing use with P5103
|
On-line Degasser |
2-4 |
|
Wetted Materials |
PEEK, Teflon° AF |
|
Power |
AC 220V±10%, 50 Hz/30 W |
|
Dimensions /Weight |
540*400*120 mm (L*W*H)/10 kg |
Technical Parameters:
|
Model |
BK-LCI5100 |
BK-LCGH5100 |
BK-LCQL5100 |
BK-LCQL5100D |
|
Pump |
P5101*1 |
P5102*1 |
P5103*1 |
|
|
Detector |
D5101*1 |
DAD5115 512*1 |
||
|
System Controller |
M5101*1 |
M5103*1 |
||
|
Sampler Injector |
Rheodyne 7725i*1 |
|||
|
Column |
Supersil ODS2 5pm ID4.6*200mm *1 |
|||
|
Workstation |
W5100*1 |
|W5100+PAD |
||
|
Valve Mounting Frame |
VB5101 *1 |
|||
|
System Kit |
iChrom 5100 *1 |
|||
|
Power Supply |
AC220V±10%, 50Hz |
|||
|
Optional Accessory |
500ml Solvent bottle*2, Column, Column Oven, S5101 Auto-sampler, M5102 System controller (for BK-LCGH5100) |
500ml Solvent bottle*4, Column, Column Oven, S5101 Auto-sampler |
||
|
Package Size(W*D*H) |
700*570*350mm*2 700*570*310mm*1 |
|||
|
Gross Weight |
75kg |
|||
