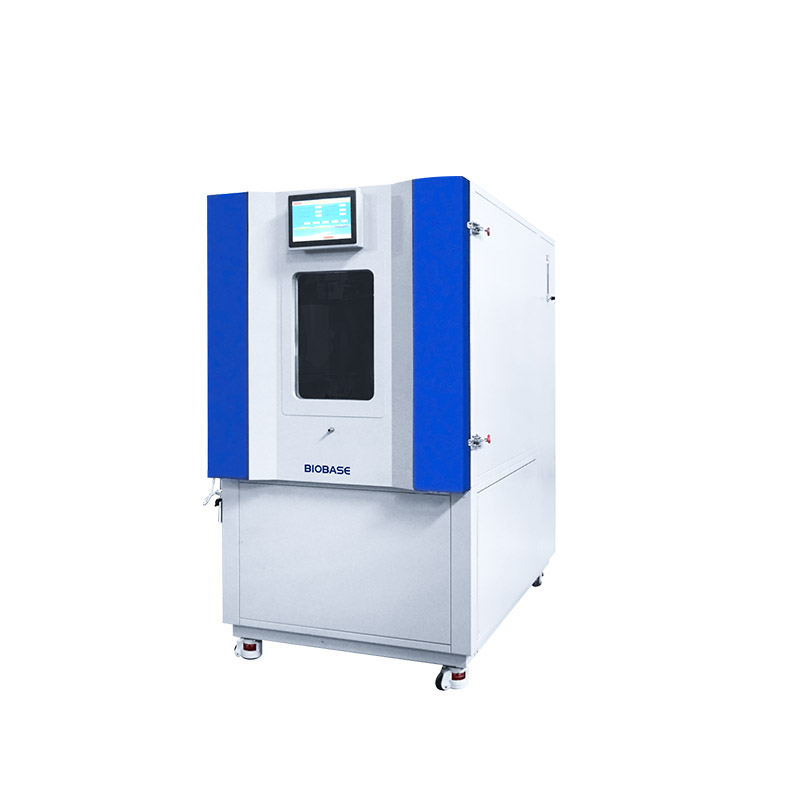

Formaldehyde Emission Test Chamber
Introduction:
BJPX-FE801-3 is suitable for the determination of formaldehyde emission of various wood-based panels, composite wood floors, and interior decoration materials such as carpets, carpet pads, and carpet adhesives, and can be used for the detection of other volatile harmful gases. The indoor climate environment is simulated realistically, and the detection results are closer to the real environment, so they are real and reliable.
| Delivery Time | |
|---|---|
| Supply Capacity |
Features:
* Overtemperature alarm, dew point overtemperature alarm, low water level alarm.
* Real-time curve, system temperature, humidity, dew point temperature can be viewed in the display screen.
* Temperature and humidity controller, touch screen and PLC control module, microcomputer automatic control.
* The box structure adopts jacket design.
* Power off protection function.
Technical Parameter:
|
Model |
BJPX-FE801-3 |
|
Temp Range |
15~40℃ |
|
Temp Accuracy |
±0.5℃ |
|
Humidity Range |
|
|
Humidity Accuracy |
±3%RH |
|
Air Exchange Rate Range |
0.2~2m3/h(Air change rate 0.2~2 times/h) |
|
Air Exchange Rate Accuracy |
Ventilation rate±1% |
|
0.1~2m/s |
|
|
Air Rate Accuracy |
≤0.05m/s |
|
Test Chamber Size |
1±0.02m3 |
|
Internal Size |
800*1000*1150mm |
|
Pressure |
10±5Pa |
|
Sealing |
|
|
Constant Temperature Box |
Polyurethane and insulation board Outer wall: steel plate, white spraying Inner wall: 304 stainless steel plate |
|
Background Concentrations |
Formaldehyde＜0.006mg/m3 TVOC＜0.05mg/m3 Single VOC＜0.005mg/m3 |
|
Consumption |
Starting power≤4kw Running power 2kw |
|
Power Supply |
Standard: 220V 50/60Hz Optional: 110V 50/60Hz |
|
External Size |
1750*1150*1860mm |
|
Net Weight |
450kg |
