Automatic Gel Imaging and Analysis System BK-AG100
Introduction:
Automatic Gel Imaging and Analysis System is a highly integrated and fully automated gel imaging system, system interface is simple and practical, the main interface has shooting button and time control to guide the user, it is ver y easy to operate, no need to have manual and tedious debug, it is your best choice.
| Delivery Time | |
|---|---|
| Supply Capacity |
Features:
High-resolution CMOS camera, high sensitivity, high resolution, with automatic focus and high performance 6 times len, specialized filter for nucleic acid dye.

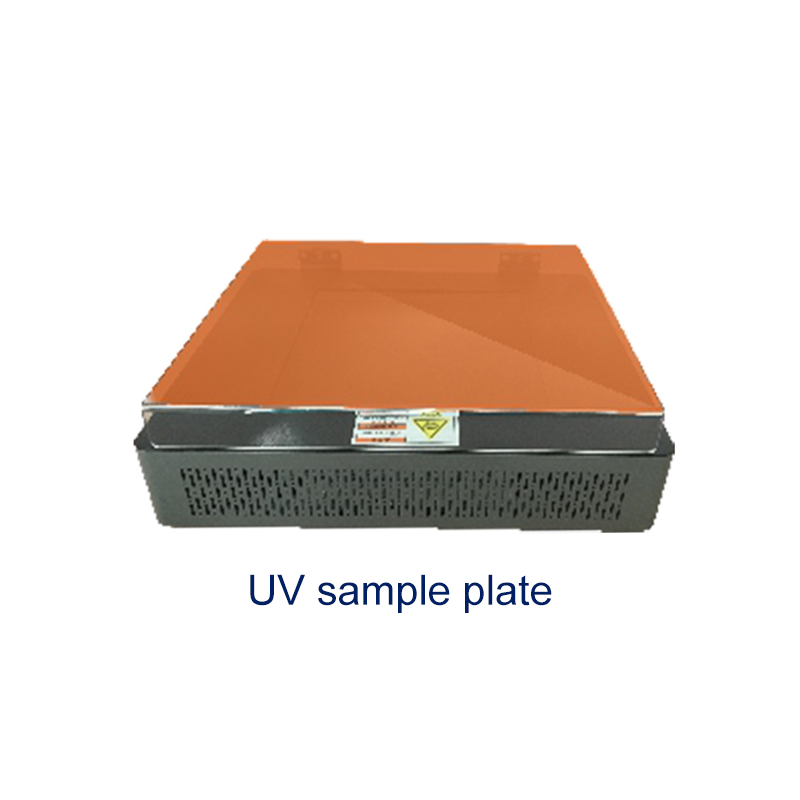

Specialized overlay glue cutting filter, compared with the traditional one, it has many advantages, easy to operate, can prevent UV and blue light damage, no need to operate in dark room, work ver y well under strong light condition The white light sample plate is used for SDS -PAGE glue samples shooting.
Application:
It can be used to do nucleic acid test for various fluorescent dyes, such as EB, SYBRGold, SYBR Green, SYBR Safe,Gel Red Gel GreenTexas, Red, Fluorescein marked DNA/RNA.
Technical Parameters:
| Mode | BK-AG100 |
| Pixel | 2592*1944(5.03MP) |
| Exposure Time | 1 ms-3000ms |
| QE Value | High QE: >65% |
| Binning | 1*1 |
| Bit Depth | 16 bit ( 0 – 65535) |
| OD | >4.8 OD |
| Lens | Motorized 8-48 mm, F1.2 |
| Trans-UV | 302nm |
| Epi-White | LED |
| Trans-White | UV to white sample plate |
| Epi-UV | 254nm、302nm、365nm |
| Filters | 590nm, Others for option |
| UV Area | 21*21cm |
| Timing Off | 1~60 mins |
| Power Supply | 100-240V, 50/60HZ |
| Packing Size | 460*475*725mm |
| Gross Weight | 31kg |
