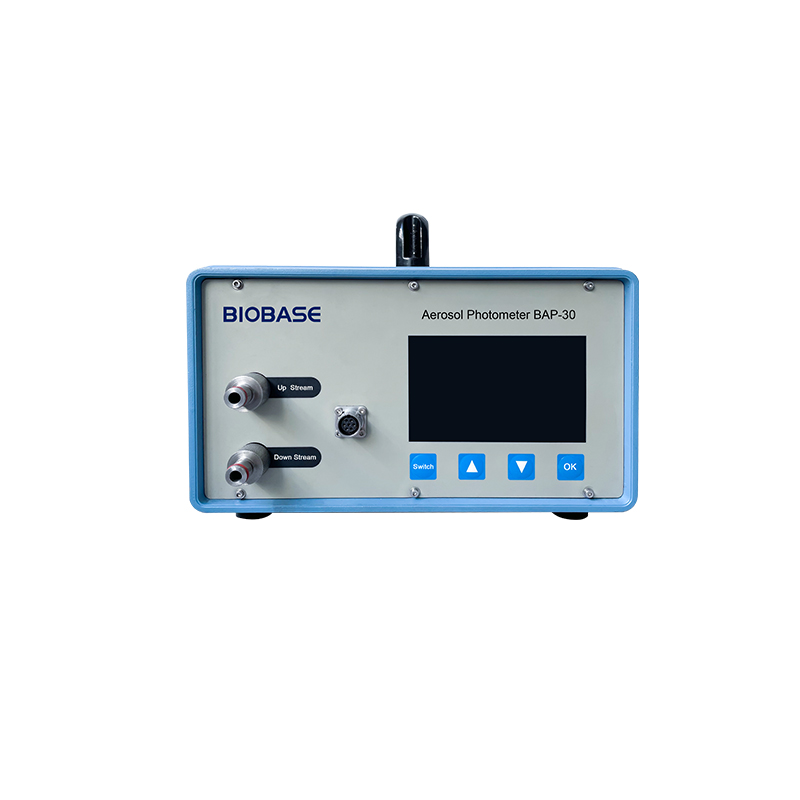

Aerosol Photometer BAP-30
The Probe acts as an extension of the base instrument through a nearly identical user interface. All status and selection icons from the base unit are represented on 2.8” LCD, which can improve work efficiency and give immediate presentation when find leakage.
| Delivery Time | |
|---|---|
| Supply Capacity |
Features：
User friendly interface
3.5” LCD display, menu driven interface. Aerosol measurements, real time concentration and pump sampling rates are prominently displayed for easy viewing. System parameters and selections such as alarm types, alarm set points and aerosol reagent are shown on the lower menu bar, while icons at the top of the screen give the status of connection, alarm type, reporting mode.
Portable scan probe
The Probe acts as an extension of the base instrument through a nearly identical user interface. All status and selection icons from the base unit are represented on 2.8” LCD, which can improve work efficiency and give immediate presentation when find leakage.
Easy to trace measurement result
BAP-30 has three independent reporting functions storage/continuous/print modes, the result can be printed out by a thermal printer.
Performance guaranteed
BAP-30 adopts the famous brand pump, light source and the sensor produced with top domestic precision process technology (same as the domestic aerospace technical standard), and has been independently tested and qualified to ensure compliance with all applicable electrical and safety requirements.
Technical Parameter：
|
Model |
BAP-30 |
|
Housing |
Solid die-cast aluminum housing, easy for maintenance and calibration |
|
Measuring Scope |
0.0001% to 100.0% |
|
Alarm |
User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded. |
|
Reagent Setting |
PAO |
|
Dynamic Range |
Up to 600ug/l |
|
Sensitivity |
1% of readings for readings between 0.01% to 100% |
|
Reproducibility |
0.5% of readings for readings between 0.01% to 100% |
|
Light Source |
Long time, steady, solid scattering chamber light source; work under low power and generate low heat and deviation value; service life: 50,000- 100,000 h |
|
Output |
RS232 Connection or external printer(optional) RS232 |
|
Reporting |
Continuous mode/Auto-save mode/print mode |
|
Electric Safety |
CE, FCC, EN61010-1:2010, EN61326-:2006 |
|
Scanning Probe |
Solid and comfortable design of handle with the 2.5 meter connection ,2 8inch LCD display, soft probe with a adjustment of 360 angles |
|
Standard Accessory |
Two pieces of sampling pipes, operator's manual, Certification, warranty card, Power line |
|
Optional |
Potable case, Printer |
|
Power Supply |
AC220V 50/60Hz(Standard); 110V 60Hz(Optional, external transformer) |
|
External Size(W*D*H) |
260*370*160mm |
|
Net Weight |
10.66kg(base instrument)+0.62kg(probe)=11.28kg |
|
Package Size(W*D*H) |
650*460*480 |
|
Gross Weight |
24kg |
