Aerosol Generator BAG-60
Introduction

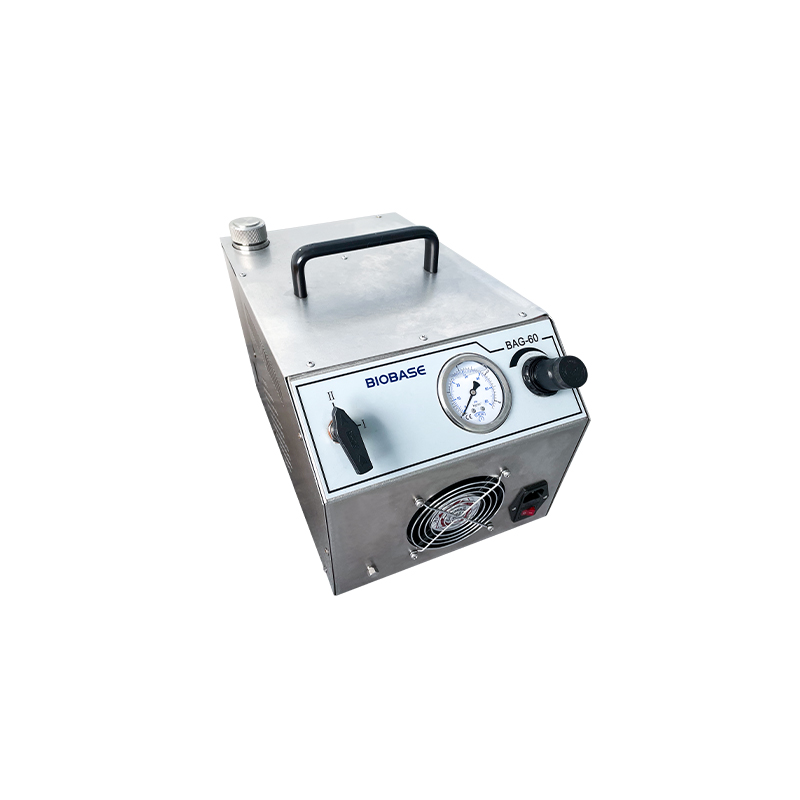

BAG-60 is a small, light and rugged portable, self-contained Laskin-Nozzle aerosol generator. It can generate aerosol of 10ug/l to 100ug/l with airflow 50cfm/min to 4725cfm/min. Laskin-Nozzle aerosol generators is with rugged stainless steel structure, big filling port, independent spray-head and pressure control, and normative and c lean joint output.
BAG-60 is lightweight and durable Laskin-Nozzle aerosol generator and the only one with switchable two modesin the country. It can produce dispersed suspension of submicron particles just needing a suitable voltage source, which also can use an external air source, can make fog volume triple big. We believe whatever you want to have about our instrument, you will find the one you want.
| Delivery Time | |
|---|---|
| Supply Capacity |
Function
BAG-60 aerosol generator has 4 pieces of Laskin-nozzle. When with the pressure of 20 psig, it works and is diluted by the air of 472.5CFM, gas concentration approaching 100ug/l. Built-in control valve can make 1 or 4 Laskin-Nozzles work to supply a wide range of aerosol concentrations. Applications include workstations, negative-pressure filtration units, biological safety cabinets and ceiling modules, HEPA filter and more.
Application
Clean Bench, Clean Room, HV Built-in AC System, HEPA Filter, ULPA Filter, Operating Room
Technical Parameter：
|
Model |
BAG-60 |
|
Air flow range |
50 – 2,000cfm/min (1.4-56.6m3/min) built-in pump 50 – 4,725cfm/min (1.4-133.7m3/min) external air source |
|
Aerosol concentration |
100ug/l, flow of 472.5cfm/min 10ug/l, flow of 4725cfm/min |
|
Generator type |
1-4 Laskin Nozzles(about 2-14 nozzles) |
|
Aerosol type |
PAO, DOP, polydispersed |
|
Compressed air |
1.Voltage source: build-in air compressor, no needing external air source 2.External air source: three times growing for aerosol volume |
|
Gas type |
Varied diametric particle(cold) |
|
Power Supply |
AC220V 50/60Hz(Standard);110V 60Hz(Optional, external transformer) |
|
External Size(W*D*H) |
370*260*230mm |
|
Net Weight |
15kg |
|
Package Size(W*D*H) |
535*385*375mm |
|
Gross Weight |
20kg |
